Description

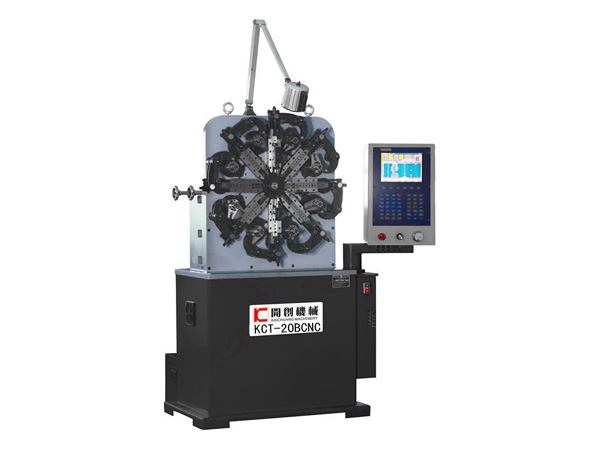

KCT-20B 3/4 Axis CNC versatile spring forming machine, referred to as the 20-type spring machine, processing line diameter is φ0.2-2.5mm, suitable for processing all kinds of precision compression spring, spring tower, single/double torsion spring, spring, spring, spring and flat wire shaped complex line of molded products, such as battery springs, toys spring lighting, brake clamp locking clip spring and scroll spring etc..
Parameters
| 機 型 | Model | KCT-20B (3-axis) | KCT-20B (3-axis) |
| 軸 數(shù) | Axis Count | 3 Axis | 4 Axis |
| 加工線徑 | Wire Size Range | φ0.2-2.5mm | φ0.2-2.5mm |
| 最大彈簧外徑 | Max Outside Diameter | φ50mm | φ50mm |
| 最大送線長度 | Max Feeding Length | Unlimited(無限) | Unlimited(無限) |
| 最大送線速度 | Max Feeding Speed | 110m/min | 110m/min |
| 最大生產(chǎn)速度 | Max Production Rate | 70pcs/min | 70pcs/min |
| 凸輪指令值 | Cam setting Value | ±0.1°～±359.9° | ±0.1°～±359.9° |
| 送線指令值 | Feeding Length Value | ±0.01～±9999.99 | ±0.01～±9999.99 |
| 送線伺服電機 | Wire Feeding Servo Motor | 2.7kw | 2.7kw |
| 凸輪伺服電機 | Cam Servo Motor | 2.7kw | 2.7kw |
| 轉(zhuǎn)芯伺服電機 | Quill Servo Motor | 1.0kw | 1.0kw |
| 卷曲伺服電機 | Spinner Motor | ---- | 0.75kw |
| 機器尺寸 | Dimension(L*W*H) | 1040x600x1575mm | 1040x600x1575mm |
| 機器重量 | Weight | 1200kg | 1200kg |
| 電 源 | Power AC | 3-380VAC 50Hz | 3-380VAC 50Hz |
Our company's KCT-20B 3/4 axis CNC versatile spring forming machine used in Taiwan CNC control system, reference Japan SANYO servo motor and high precision bearings, the models of a total of four axes, respectively, camshaft, feeder axis, rotating core shaft and crankshaft (with separate volume), through the system CNC code, respectively on the feeding line and cam drive system of synchronous control, can achieve 24 hours of precise operation. In addition, due to the use of high precision servo motor and computer control, we can easily produce precision and complex angle spring products with servo crimping one axis.
