Hello,Welcome to DongGuan KaiChuang Precision Machinery Co.,Ltd!

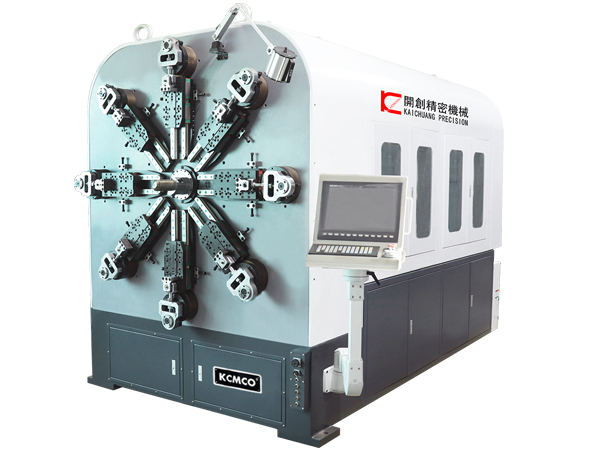

KCT-1260WZ 12 Axis camless CNC versatile spring rotating forming machine

Description

 KCT-1260WZ 12-axis camless CNC versatile spring forming machine, referred to as 6.0mm camless spring machine, machining line diameter φ2.0-6.0mm, suitable for the production of various precision compression spring, tension spring, torsion spring, scroll spring, tower spring, flat wire springs, special-shaped spring and molding line and other products, widely used in furniture, mold, machinery, agricultural machine, motorcycle, automobile, railway and aviation etc..

Parameters

     機 型     Model     KCT-1260WZ
     軸 數     Axis Count     12 Axis
     加工線徑     Wire Size Range     φ0.2-6.0mm
     最大彈簧外徑         Max Outside Diameter     φ120mm
     最大送線速度     Max Feeding Speed     105m/min
     旋繞比     Spring Index     4
     送線輪組數     Wire Feeding Wheel Count          4 pairs(組)
     送線伺服電機

     Feeding Servo Motor

     7.5kw
     成形伺服電機     Forming Servo Motor     4.4kw*8
     轉芯伺服電機     Quill Servo Motor      1.8kw
     轉線伺服電機     Wire Rotation Servo Motor      5.5kw
     卷曲伺服電機     Spinner Servo Motor     1.8kw
     機大尺寸     Dimension(L*W*H)     3300x1800x2300mm
     機器重量     Weight     8000kg
     電 源     Power AC     3-380VAC 50Hz



  Our company's KCT-1260WZ 12-axis camless CNC versatile spring rotating forming machine by Taiwan Windows7 operation control system, reference imported from Japan Yaskawa servo motor, using the unique non cam and no arm design tool are controlled independently by eight servo motors, the turret eight shaft, wire feeding shaft, a shaft, a rotating core transfer line the shaft and the shaft of a curl, a crank connecting rod forming system, wire feeding system, transfer system, straightening system and rotary core system etc.. In addition, the machine can be equipped with hydraulic scissors device, cutting noise is small, the damage to the mandrel and the machine is zero; at the same time, it greatly improves the processing range of spring, not only has the characteristics of fast forming, accurate accuracy and stable performance, but also more convenient and easy to operate.



Main Products: CNC spring machine | computer compression spring machine | CNC versatile spring forming machine | camless spring machine
